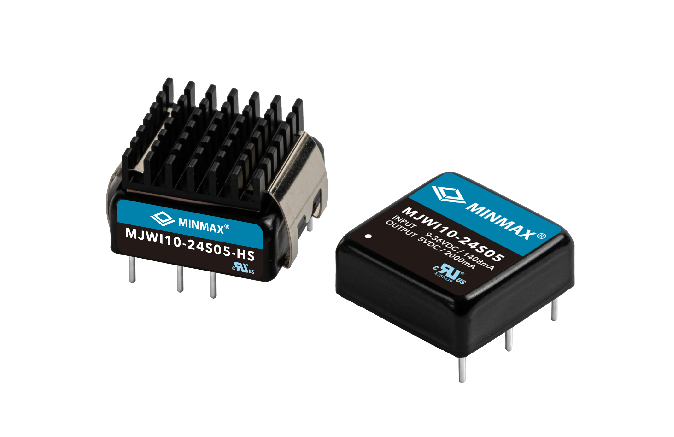

MJWI10 シリーズ
- 業界標準 1"×1" パッケージ
- ウルトラワイド入力範囲 4：1
- 安定化出力
- 高効率最大 87%
- 絶縁耐圧 1500 VDC
- 動作周囲温度範囲 -40℃ to +80℃
- 入力低電圧/過電流/短絡保護機能
- リモート オン/オフ制御機能
- 絶縁ベースプレート付きシールドメタルケース
- 伝導電磁妨害フィルタ内蔵、EN 55032 Class A 準拠
- UL/cUL/IEC/EN 62368-1(60950-1)認証取得、CEマーキング
The MINMAX MJWI10 series are cost optimized DC-DC converter modules offering 10W output power in a 1"x1"x0.4" shielded metal package with industry standard pinout. All models provide ultra-wide 4:1 input voltage range and fixed output voltage regulation. State-of-the-art circuit topology provides a high efficiency up to 87% which allows an operating temperature range of -40℃ to +80℃. Further features include remote On/Off, under-voltage, overload and short circuit protection and safety approval UL/cUL/IEC/EN 62368-1(60950-1) with CB report and CE marking. Typical applications for these converters are battery operated equipment, instrumentation, distributed power architectures in communication and industrial electronics and other space critical applications.
| Output Voltage Accuracy | ±2.0% max. | ||
| Line Regulation | ±0.3% typ. | ||
| Load Regulation | ±0.5% typ. | ||
| Ripple & Noise (20MHz) | 100mVp-p typ. | ||
| Efficiency | Up to 87% | ||
| I/O Isolation Voltage | 1500VDC min. | ||
| I/O Isolation Capacitance | 1500pF max. | ||
| Operating Ambient Temp. Range | -40°C to +80°C (See Derating Curve) | ||
| Short Circuit Protection | Continuous (Auto. Recovery) | ||
| Remote ON/OFF | Enable High | ||
| Case Material | Metal (6 side shielded with insulated baseplate) | ||
| Safety Approval | UL/cUL/IEC/EN 62368-1(60950-1), CB-Report, CE Marking | ||
