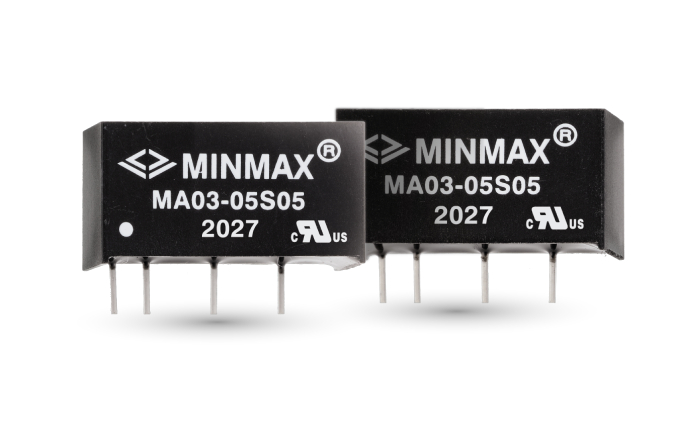

MA03 Series
3W DC-DC Converters
Features
- Industrial Standard SIP-7 Package
- Semi-regulated Output Voltage
- Very High Efficiency up to 89%
- I/O Isolation 1000 VDC
- Operating Ambient Temp. Range -40℃ to +95℃
- UL/cUL/IEC/EN 62368-1(60950-1) Safety Approval
OVERVIEW
The MINMAX MA03 series is a range of isolated 3W DC-DC converter modules in a small SIP-package. There are 12 models available with 5V, 12V or 24VDC input. These products have a typical load regulation of 5.0% to 7.0% depending on model. The MA03 DC-DC converters are a compromise between a more expensive fully regulated converter and a non-regulated converter. They offer the designer a solution for many cost critical applications where the output voltage variation has to be kept in a certain limit under all load conditions.
Specifications
| Line Regulation | ±1.01% typ. |
| Load Regulation | 3.5% - 8% max. (Depending on model) |
| Ripple & Noise (20MHz) | 100mVp-p max. |
| Efficiency | Up to 89% |
| I/O Isolation Voltage | 1000VDC min. |
| I/O Isolation Capacitance | 60pF typ. |
| Operating Ambient Temp. Range | -40℃ to +95℃ (See Derating Curve) |
| Short Circuit Protection | Short Term |
| Case Material | Plastic (UL94V-0 rated) |
| Safety Approval | UL/cUL/IEC/EN 62368-1(60950-1), CB-Report |
| Comparison | ECAD | Model Number | Output Power | Input Voltage (VDC) | Output Voltage (VDC) | Output Current (mA) | Efficiency | Output Regulation | I/O Isolation | Package Type |
|---|
